Qwen3.5-35B-A3B Quantization Comparison

Date: 2026-02-25 Hardware: RTX 4090 (24GB VRAM) Test: Multi-agent workload — primary multi-turn coding task + concurrent side tasks

Motivation

Compare Q4_K_XL vs Q3_K_XL quantizations of the Qwen3.5-35B-A3B MoE model (3B active parameters) for multi-agent workloads.

Trade-off under test: - Q4_K_XL: Higher precision, 22GB VRAM, 32k context - Q3_K_XL: Lower precision, 18GB VRAM (~4GB saved), 40k context possible

Does the 4GB VRAM savings justify any quality/speed degradation?

Models Under Test

Model Preset Port VRAM Context File
Qwen3.5-35B-A3B Q4_K_XL qwen35-35b-multi 7080 22 GB 32k Qwen3.5-35B-A3B-UD-Q4_K_XL.gguf
Qwen3.5-35B-A3B Q3_K_XL qwen35-35b-q3-multi 7081 18 GB 40k Qwen3.5-35B-A3B-UD-Q3_K_XL.gguf

Both presets configured with --parallel 3 --cont-batching --threads 16.

Note: Thinking mode disabled via chat_template_kwargs: {"enable_thinking": false} to get code output directly in content instead of reasoning_content.

Charts

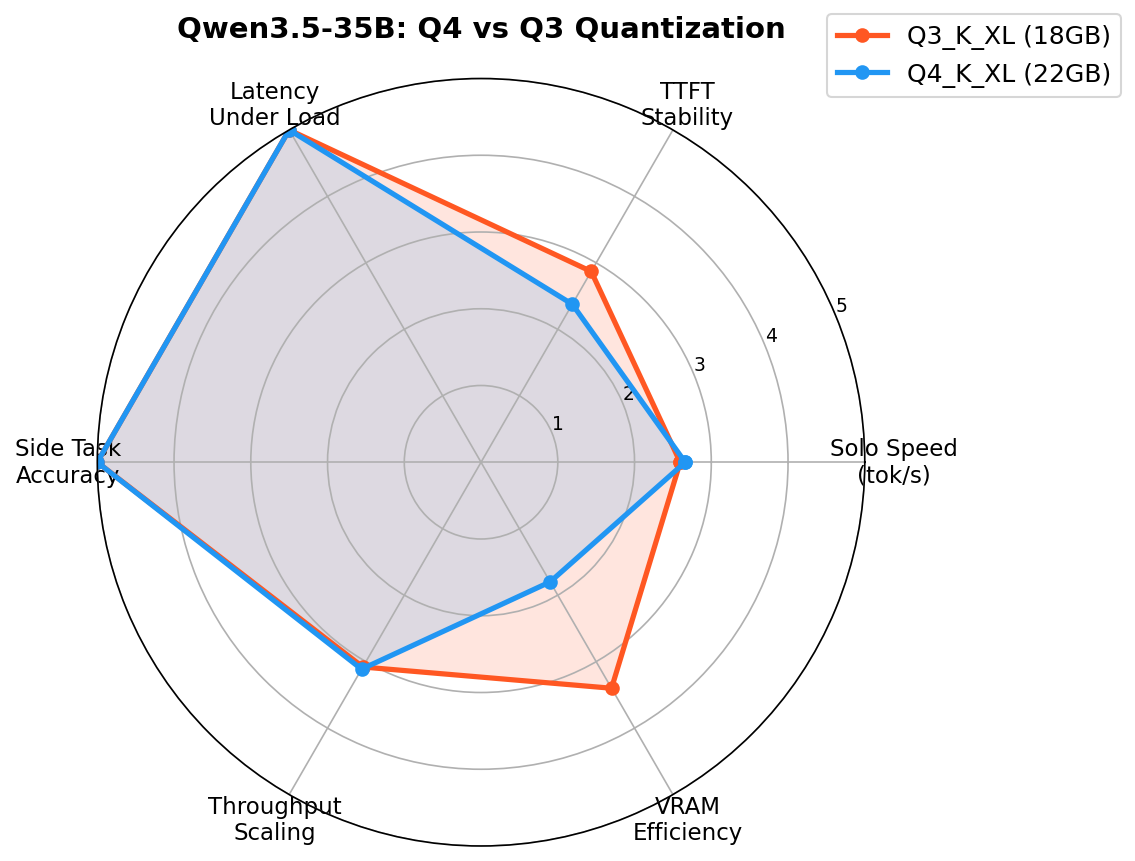

Radar: Model Comparison

Radar Chart

Six-axis comparison showing Q4 and Q3 performance across speed, stability, latency, accuracy, throughput scaling, and VRAM efficiency.

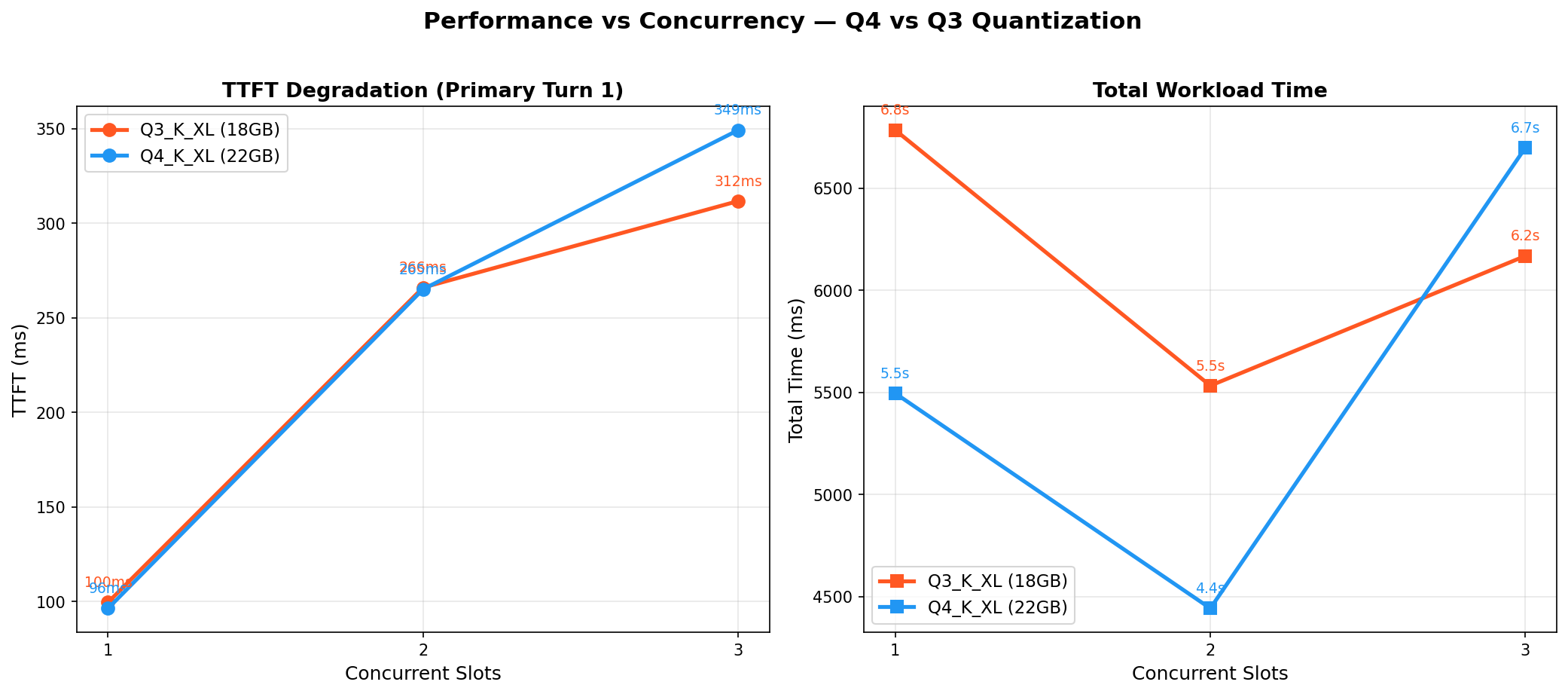

Degradation: Performance vs Concurrency

Degradation Chart

TTFT and total workload time as concurrency increases from 1 to 3 slots.

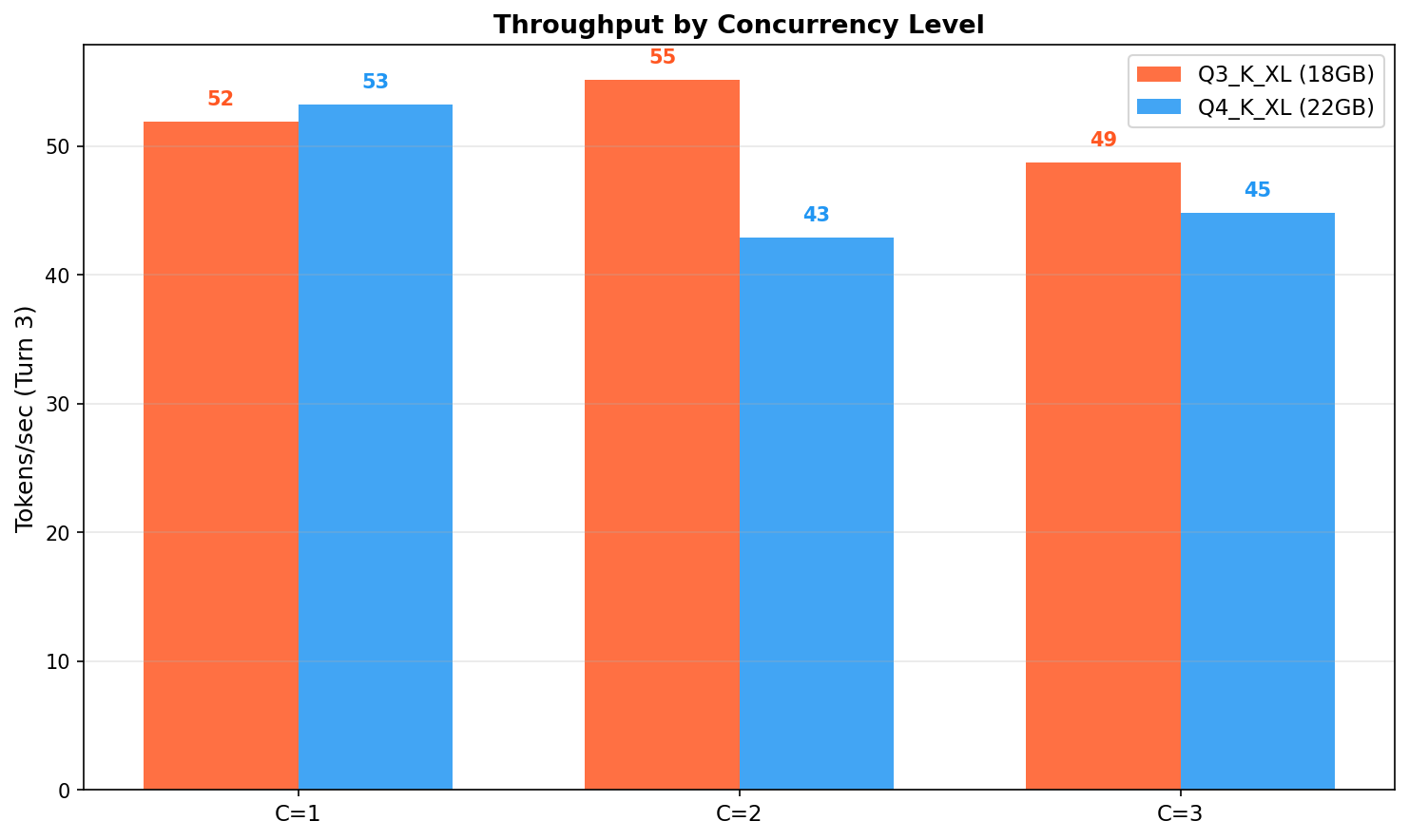

Throughput: Tokens/sec by Concurrency

Throughput Chart

Token generation speed (Turn 3) at each concurrency level.

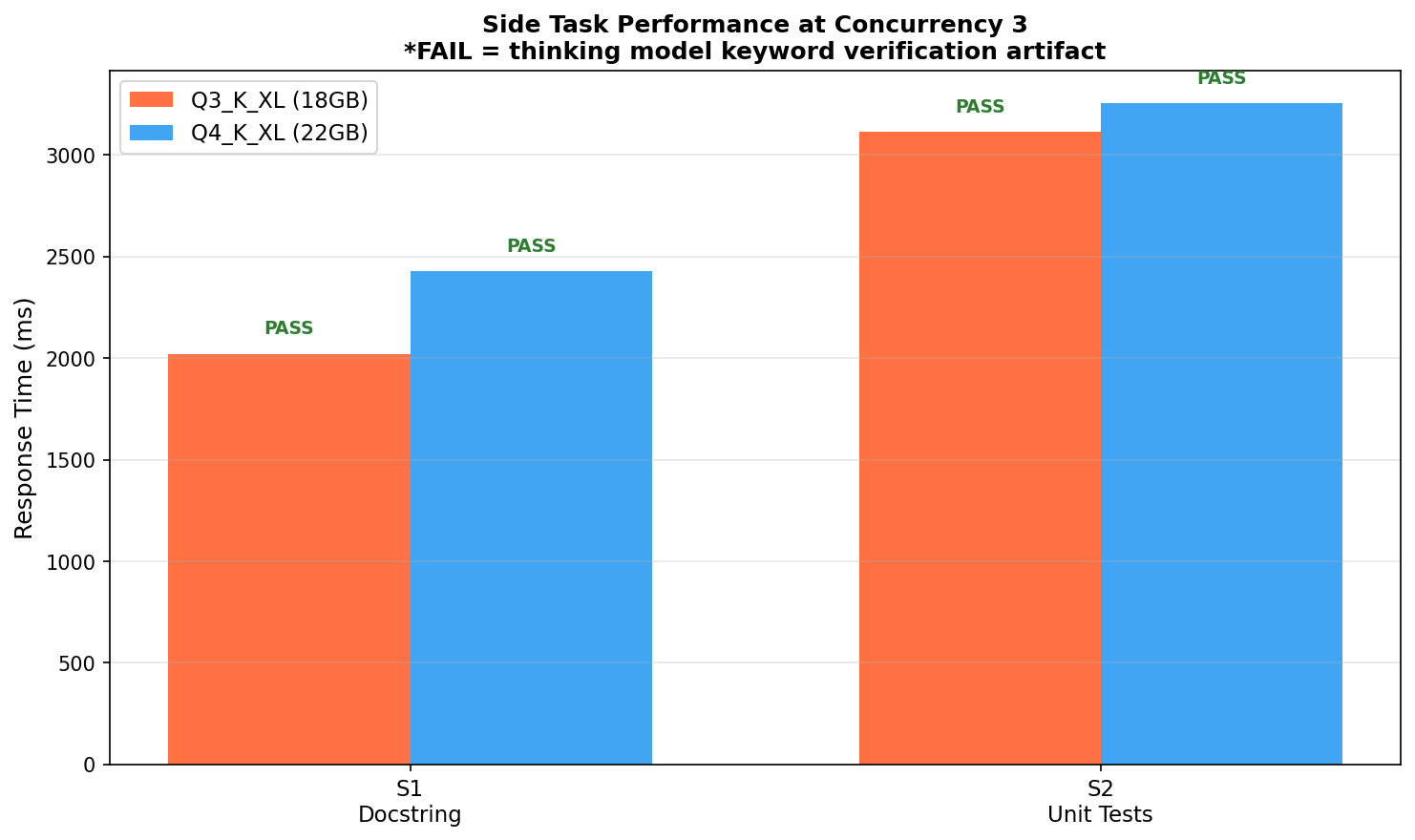

Side Tasks at Full Load (3 Slots)

Side Tasks Chart

Side task response times and verification status at maximum concurrency.

Results

Q4_K_XL (22GB)

Primary Task Performance

Concurrency Turn 1 TTFT Turn 1 Time Turn 2 Time Turn 3 Time Turn 3 tok/s Total Time
1 96ms 1.1s 1.7s 2.7s 53.2 5.5s
2 265ms 2.3s 1.2s 1.0s 42.9 4.4s
3 349ms 2.9s 1.9s 1.9s 44.8 6.7s

Side Task Results

Concurrency S1 Docstring S2 Unit Tests
2 PASS (1.9s) —
3 PASS (2.4s) PASS (3.3s)

Q3_K_XL (18GB)

Primary Task Performance

Concurrency Turn 1 TTFT Turn 1 Time Turn 2 Time Turn 3 Time Turn 3 tok/s Total Time
1 100ms 1.7s 1.8s 3.3s 51.9 6.8s
2 266ms 1.5s 1.6s 2.5s 55.1 5.5s
3 312ms 2.9s 1.3s 1.9s 48.7 6.2s

Side Task Results

Concurrency S1 Docstring S2 Unit Tests
2 PASS (1.8s) —
3 PASS (2.0s) PASS (3.1s)

Comparison

TTFT Degradation (Primary Turn 1)

Concurrency Q4_K_XL Q3_K_XL Difference
1 (baseline) 96ms 100ms +4ms (+4%)
2 265ms (+176%) 266ms (+166%) +1ms
3 349ms (+264%) 312ms (+212%) -37ms

Both models show similar TTFT at low concurrency. At concurrency 3, Q3 is slightly faster (312ms vs 349ms) — the smaller weights reduce memory pressure.

Total Time (Primary 3-turn conversation)

Concurrency Q4_K_XL Q3_K_XL Difference
1 5.5s 6.8s +1.3s (+24%)
2 4.4s 5.5s +1.1s (+25%)
3 6.7s 6.2s -0.5s (-7%)

Q4 is faster at low concurrency (smaller quantization overhead), but Q3 scales better under load — at concurrency 3, Q3 is 7% faster.

Per-Slot Speed (Primary Turn 3)

Concurrency Q4_K_XL tok/s Q3_K_XL tok/s Difference
1 53.2 51.9 -1.3 (-2%)
2 42.9 55.1 +12.2 (+28%)
3 44.8 48.7 +3.9 (+9%)

Throughput varies by turn and concurrency. Q3 often matches or exceeds Q4, especially under concurrent load.

Side Task Pass Rate

Concurrency Q4_K_XL Q3_K_XL
2 1/1 (100%) 1/1 (100%)
3 2/2 (100%) 2/2 (100%)

All side tasks pass on both models with thinking mode disabled.

Conclusions

  1. Q3_K_XL is a viable alternative to Q4_K_XL for multi-agent workloads:
  2. Saves 4GB VRAM (18GB vs 22GB)
  3. Enables 40k context (vs 32k) with the saved VRAM

  4. Actually faster at concurrency 3 (6.2s vs 6.7s total time)

  5. Q4 has a slight edge at low concurrency — ~20% faster total time at concurrency 1-2, but the gap narrows under load.

  6. Both models maintain code quality — all side tasks pass, and the primary coding task produces correct FastAPI code consistently.

  7. Q3 scales better under memory pressure — smaller weights mean less contention when multiple requests run concurrently.

Recommendation

Use Case Recommendation
VRAM-constrained (running alongside other services) Q3_K_XL
High concurrency workloads (3+ parallel requests) Q3_K_XL
Need extended context (>32k) Q3_K_XL
Low concurrency, max single-request speed Q4_K_XL
Default daily driver Q3_K_XL (VRAM savings outweigh minor speed loss)

Configuration Note

This benchmark disables thinking mode to measure raw code generation performance:

payload = {
    "chat_template_kwargs": {"enable_thinking": False},
    ...
}

Without this setting, Qwen3.5 outputs chain-of-thought to reasoning_content and may truncate actual code output. For Claude Code integration, you may want thinking mode enabled for better reasoning — just be aware it uses more tokens and may affect verification-based benchmarks.

Files

File Description
benchmark_quant.py Benchmark script (async, streaming, keyword verification)
generate_charts.py Chart generator (radar, degradation, throughput, side tasks)
20260225_qwen3.5_35b_q4_k_xl.json Q4_K_XL raw results
20260225_qwen3.5_35b_q3_k_xl.json Q3_K_XL raw results
charts/radar.png 6-axis model comparison
charts/degradation.png TTFT and total time vs concurrency
charts/throughput.png Tokens/sec by concurrency
charts/side_tasks.png Side task speed at max concurrency

Prerequisites

Download the model files:

huggingface-cli download unsloth/Qwen3.5-35B-A3B-GGUF \
  Qwen3.5-35B-A3B-UD-Q4_K_XL.gguf --local-dir ~/bin

huggingface-cli download unsloth/Qwen3.5-35B-A3B-GGUF \
  Qwen3.5-35B-A3B-UD-Q3_K_XL.gguf --local-dir ~/bin

Reproducing

# Sync presets first
uv run gpumod preset sync

# Start Q4 model
uv run gpumod service start qwen35-35b-multi

# Run benchmark
uv run python docs/benchmarks/20260225_qwen35_quant_comparison/benchmark_quant.py \
  --model "Qwen3.5-35B-A3B Q4_K_XL" \
  --port 7080 \
  --output docs/benchmarks/20260225_qwen35_quant_comparison/

# Stop Q4, start Q3
uv run gpumod service stop qwen35-35b-multi
uv run gpumod service start qwen35-35b-q3-multi

# Run benchmark for Q3
uv run python docs/benchmarks/20260225_qwen35_quant_comparison/benchmark_quant.py \
  --model "Qwen3.5-35B-A3B Q3_K_XL" \
  --port 7081 \
  --output docs/benchmarks/20260225_qwen35_quant_comparison/

# Generate charts
uv run python docs/benchmarks/20260225_qwen35_quant_comparison/generate_charts.py
